Products

알루미늄재단기

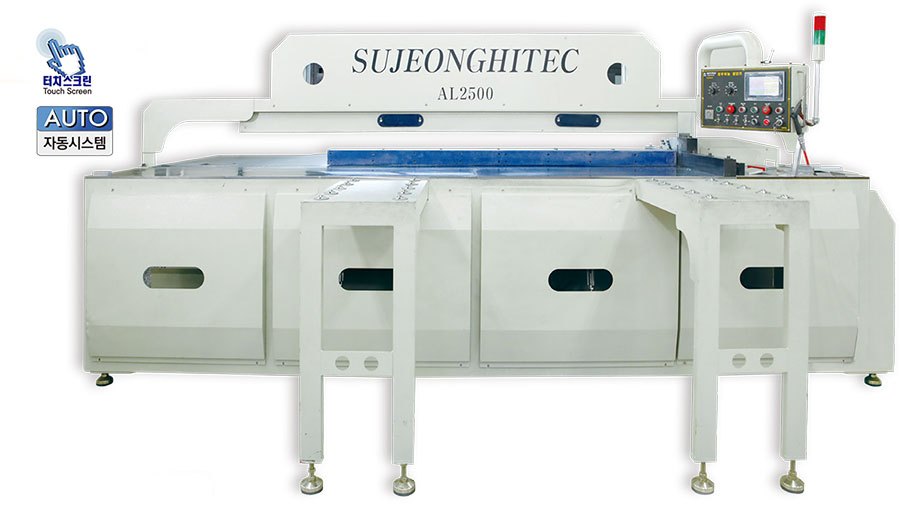

ㆍAL2500AAH

주요기능 및 사양
MODEL AL1200AAH AL2500AAH
Process Dimension
 가공칫수(WxHxT) 1,200X1,240X90T 2,500X1,240X90T
Power
 Saw (controllable rpm) 주축톱 (RPM조절) 10HP (0~4500RPM) 10HP (0~4500RPM)
Moving Stopper 아대 Servo 1.5HP 180w Servo 1.5HP 180w
Safety
 안전장치 Emergency Stop Button Beam Emergency Stop Button Beam
Dimension of Machine
 몸체(WxLxH) 2,500X2,350X1,650 3,900X2,350X1,650
Electrical Power
 사용동력 380V/60Hz(3Ø,4wires) 380V/60Hz(3Ø,4wires)
Operation
 작업컨트롤 OP/Touch Panel OP/Touch Panel
Functions
 동작기능 Running Saw,Auto,Manual Running Saw,Auto,Manual
Clamper Type
 클램프 Rackgear Type Rackgear Type
※ 제품사양은 주문에 따라 달라집니다.
